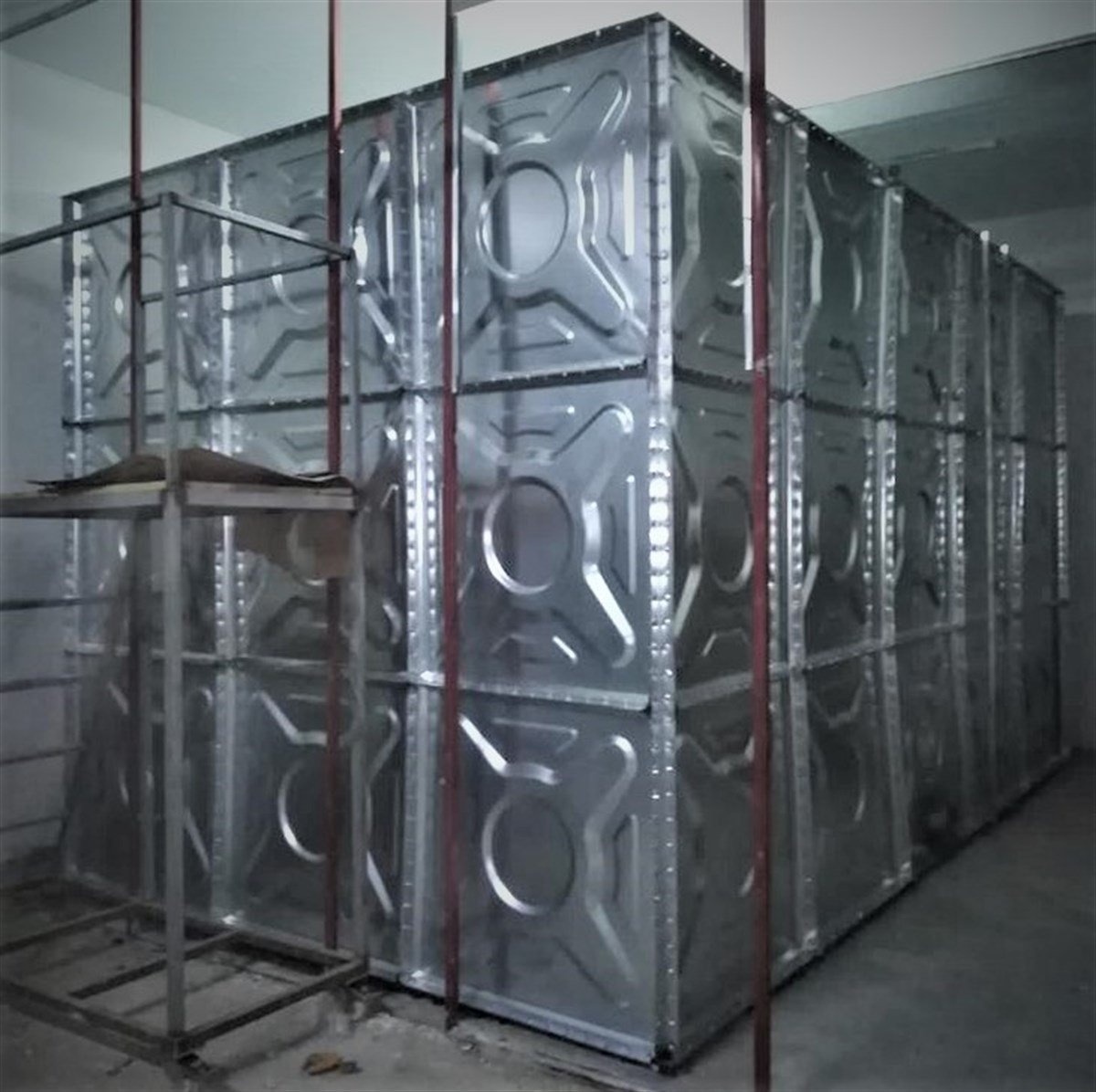

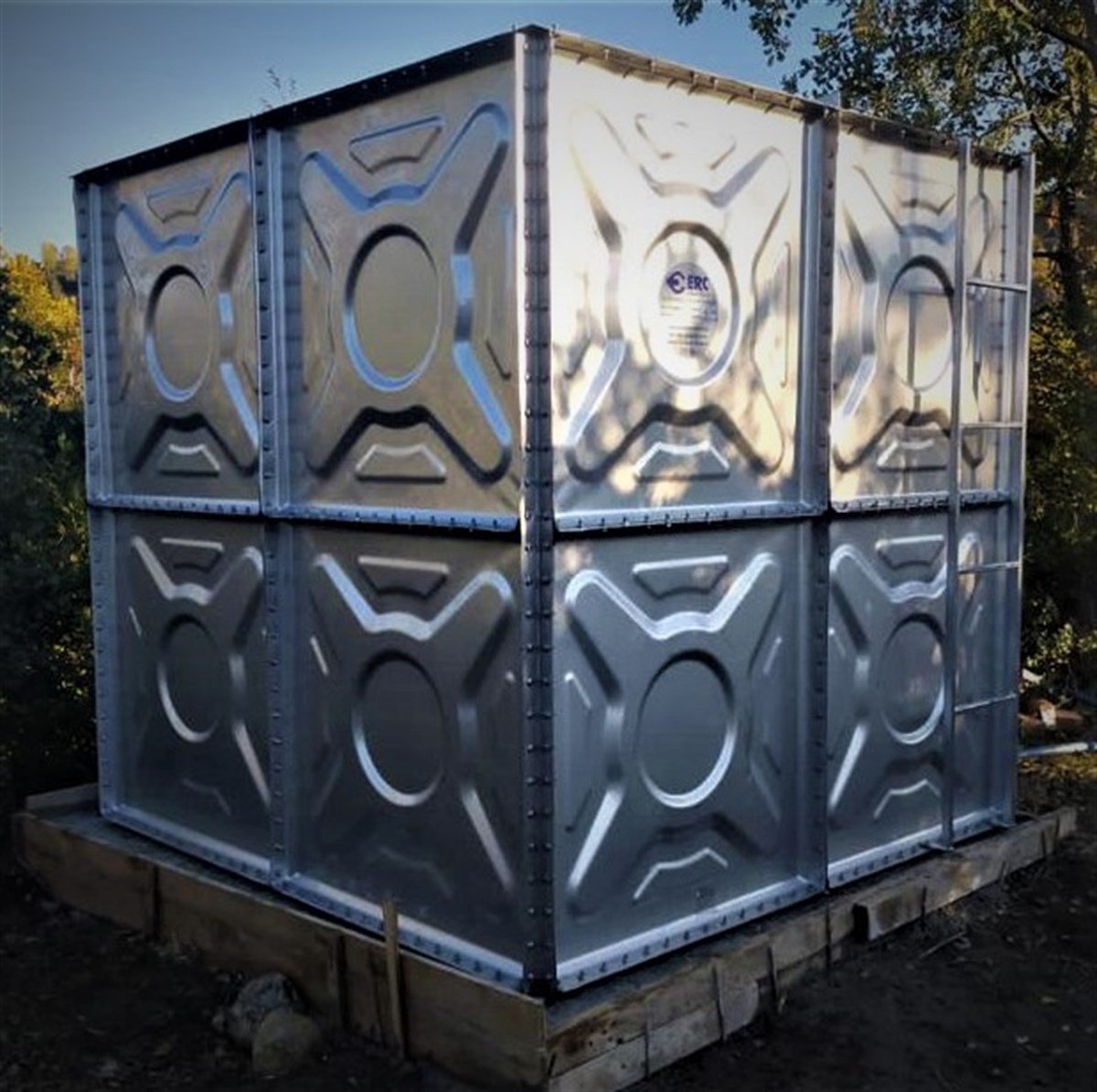

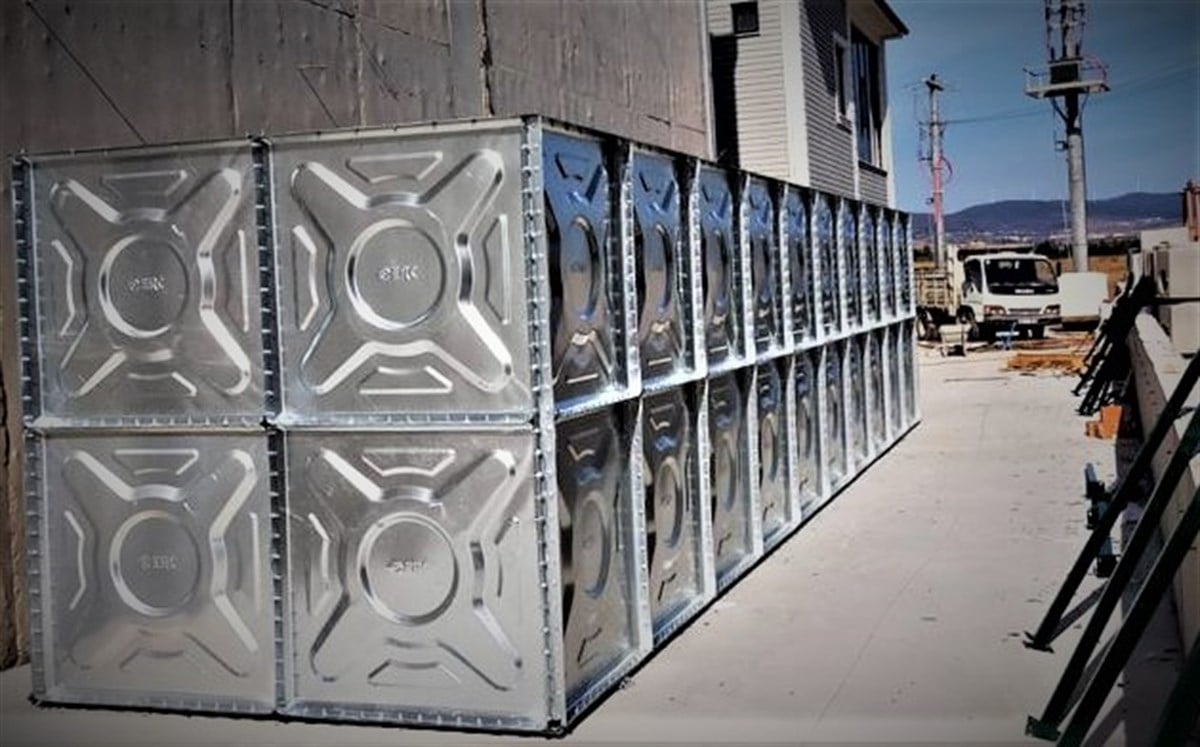

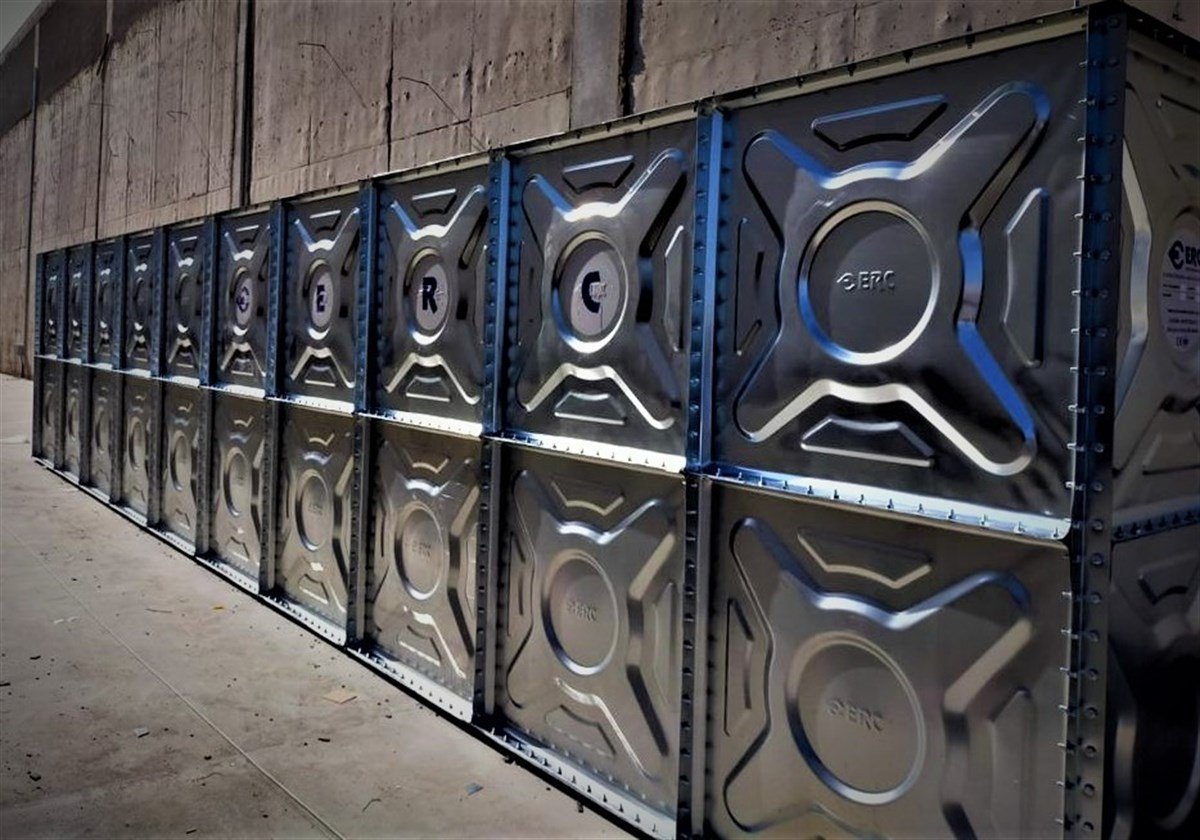

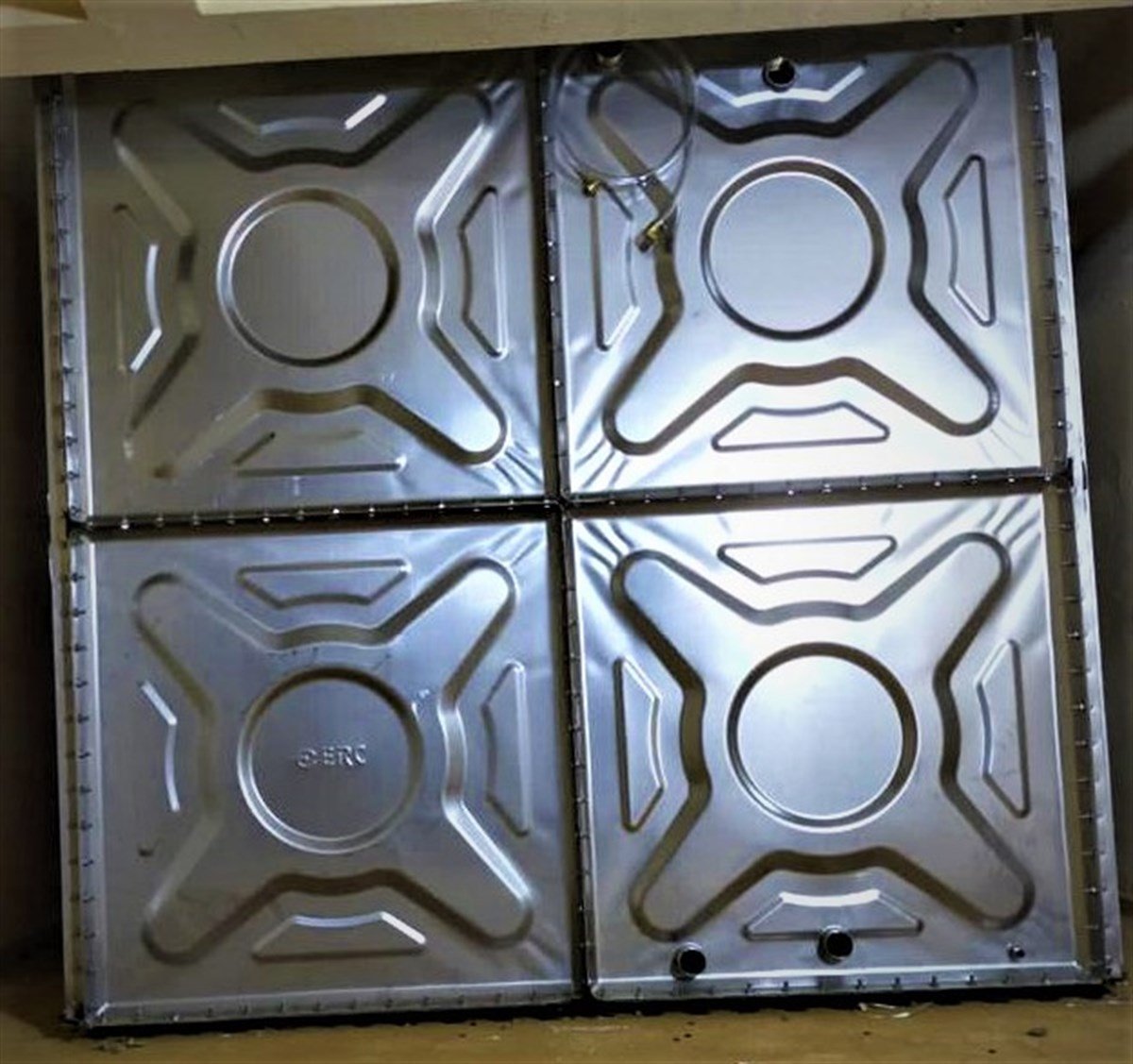

What is a Galvanized Modular Water Tank?
A bolted, panel-type steel tank manufactured from hot-dip galvanized panels. It is shipped flat-packed and assembled on site. Capacity can be scaled by adding modules and tiers, making it a smart choice for potable water, irrigation, process water, rainwater harvesting and fire-fighting storage.
Key Advantages
- Long service life: Hot-dip galvanized panels (e.g., Z275–Z600) resist corrosion.
- Hygienic: Optional EPDM/Butyl/PVC liners and food-grade sealants for drinking water.
- Fast installation: Modular design with minimal heavy equipment.
- Scalable & serviceable: Panels and accessories can be added or replaced.
- Strong & safe: Designed for wind/seismic loads; suitable for concrete or steel foundations.
- Cost-effective logistics: Flat-pack shipping lowers freight and handling costs.
Typical Applications
- Potable water storage for buildings, camps and communities
- Agriculture: irrigation and livestock water
- Industrial/process water and fire-fighting (sprinkler) reserves
- Rainwater harvesting and emergency water supply
Technical Highlights
- Material: Hot-dip galvanized steel (DX51D/S350GD), coating class Z275–Z600
- Panel thickness: 1.2–3.0 mm (capacity/height dependent)
- Capacity range: 1–5,000 m³ (custom options available)
- Tank height: 1.0–5.0 m modular tiers
- Liner: EPDM/Butyl/PVC (potable-grade options)
- Connections: DN50–DN300 inlet/outlet, overflow and drain
- Standards (ref.): ISO 1461 (galv.), EN 1993 (steel). Liner approvals vary by option.
What’s Included
Galvanized panels and corners, bolts/washers, sealants, internal bracing, roof options (flat/conical), access hatch, fittings (inlet/outlet, overflow, drain). Optional ladder, level indicator, anti-vortex, screens and insulation.
Delivery & Installation
Supplied as a flat-pack kit for on-site assembly. A leveled reinforced concrete slab (or galvanized steel base) is recommended. Lead times depend on capacity and liner selection.
FAQ
Is it suitable for drinking water? Yes, with potable-grade liner and sealants.
Can I expand capacity later? Yes—modules can be added.
How fast is installation? Most projects are completed in days, not weeks, depending on site conditions.
Contact us for engineering support, drawings and a project-specific quotation.
