What is Woven Wire Mesh?

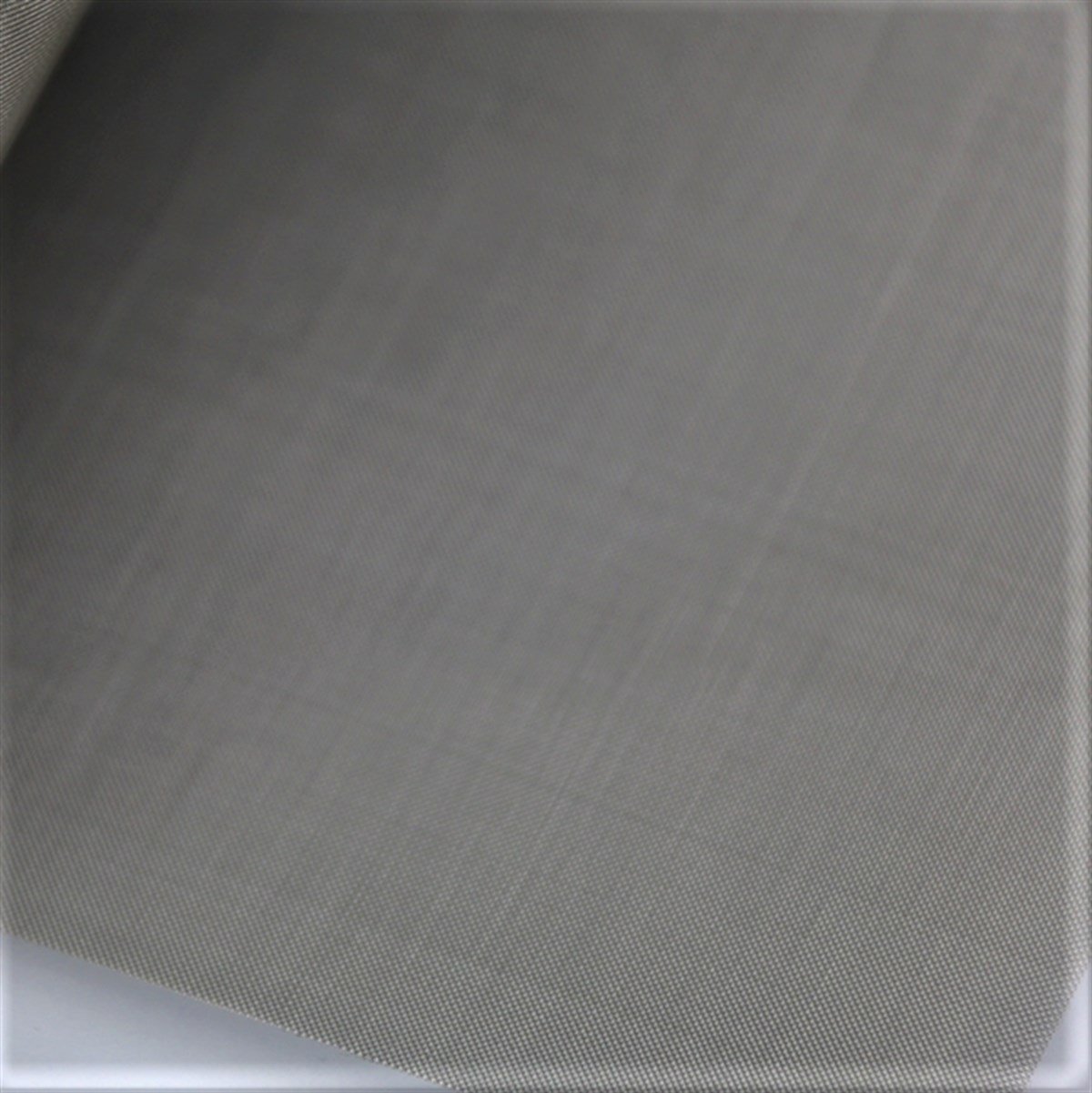

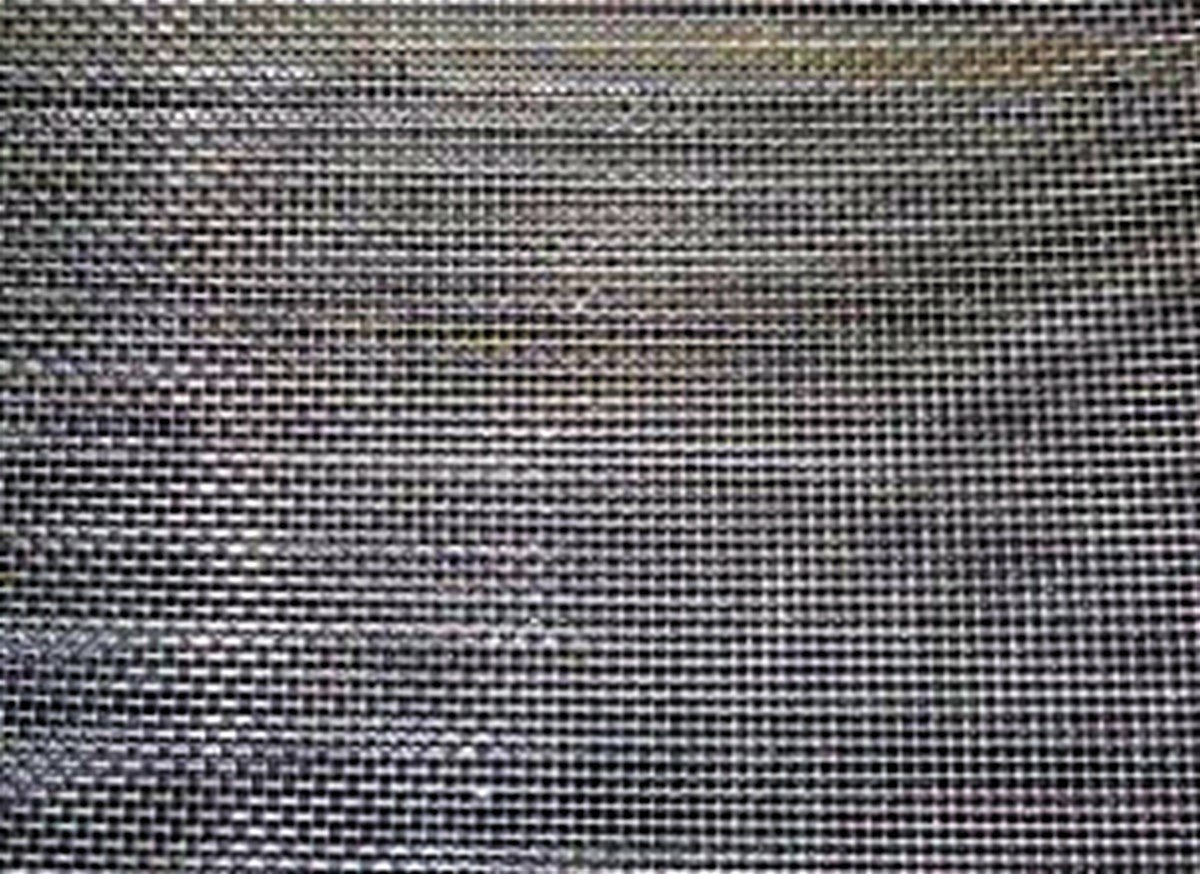

Industrial steel sieve mesh woven in plain/twill patterns for fine filtration and in pre-crimped heavy-duty patterns for vibrating screens. Suitable for screening, grading, safety guarding and air/liquid filtration.

Key Advantages

• Accuracy: tight aperture tolerance for consistent results
• Durability: galvanized or stainless corrosion resistance
• Versatility: fine mesh (2–500 mesh) to heavy crimped screens
• Flexible supply: rolls, sheets, framed panels, cut-to-size

Applications

• Vibrating screens for quarry/mining, sand, gravel
• Food & chemical sieving, grading, milling
• Filtration: air, liquid, oil; protective guards and cages
• Construction, plastering, façade, ventilation

Technical Options

• Materials: Galvanized steel, SS304, SS316

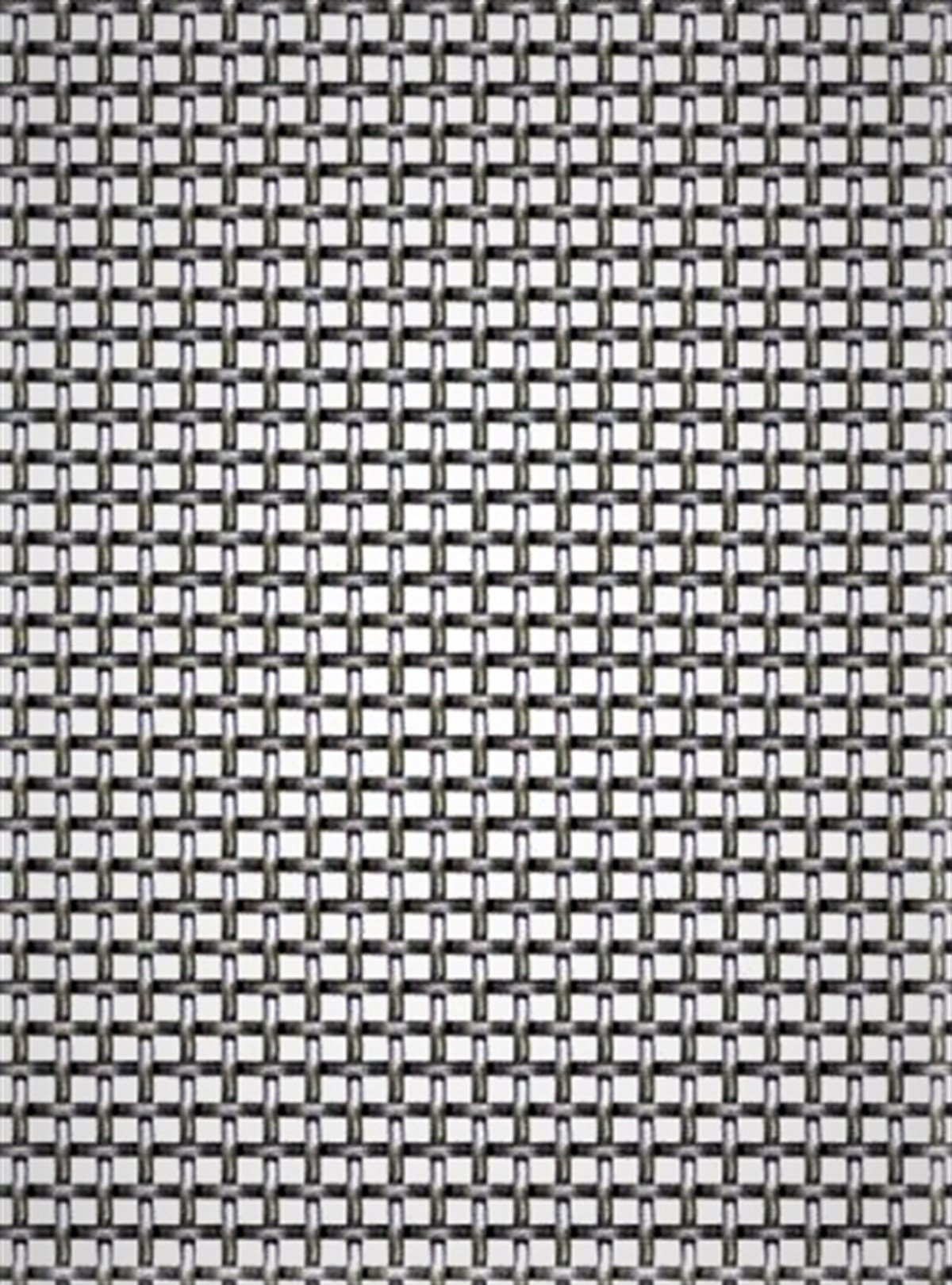

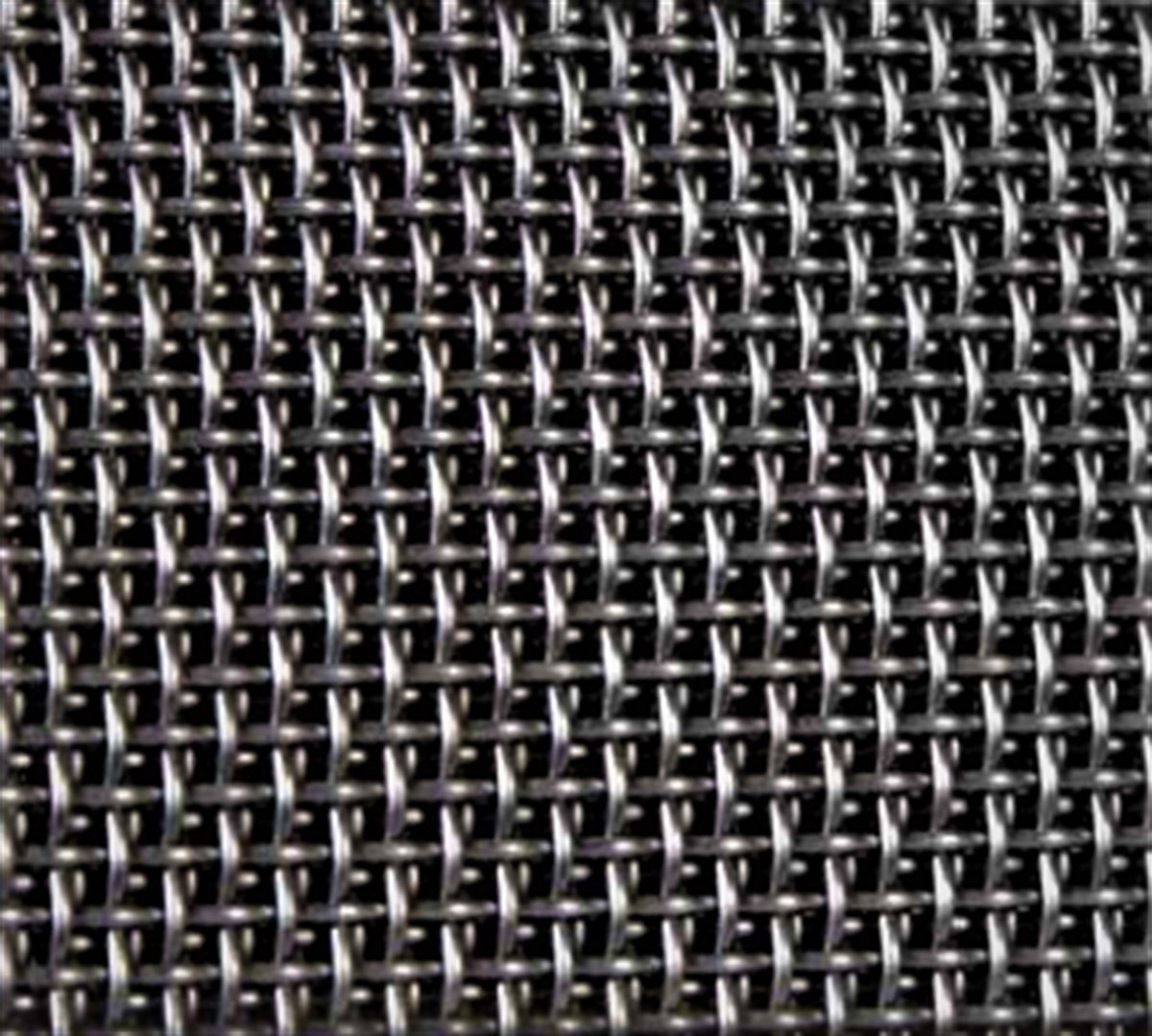

• Weaves: Plain, Twill, Plain Dutch, Twilled Dutch, Pre-Crimped

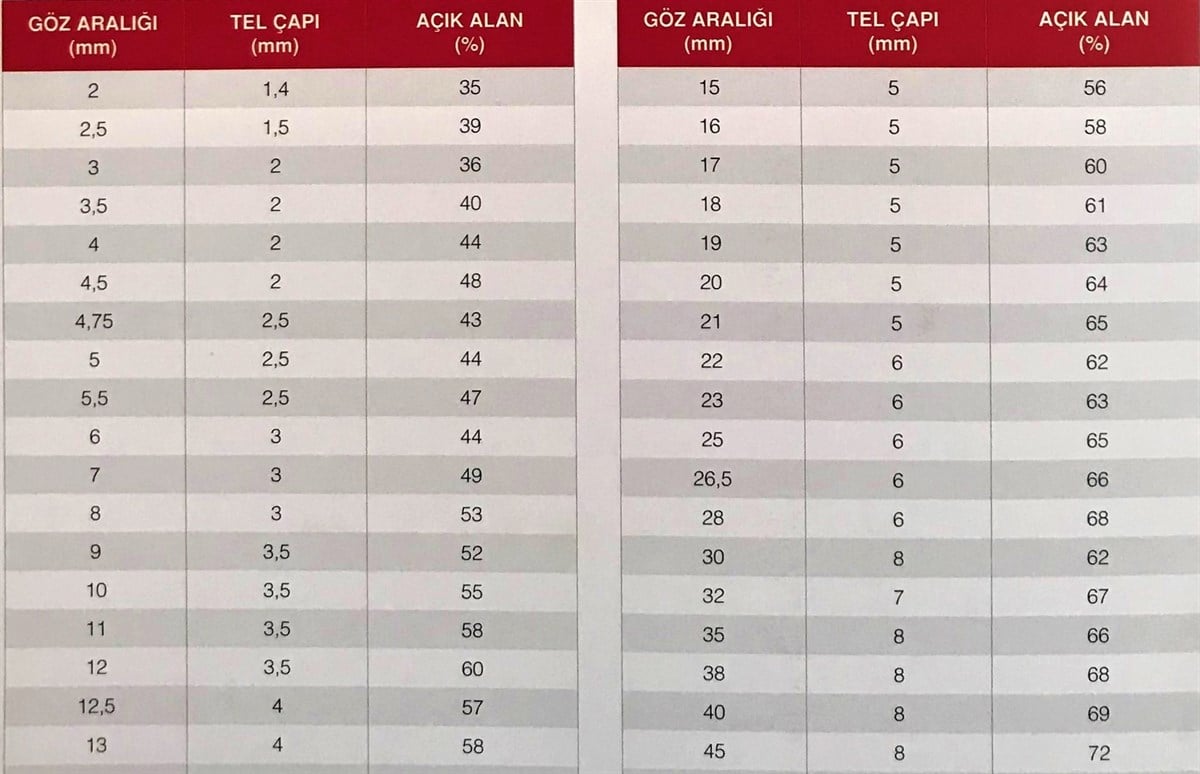

• Aperture / Mesh: 0.02–100 mm (mesh 2–500)
• Wire Diameter: 0.02–6.0 mm
• Widths: 1.0–2.0 m standard (others on request)
• Formats: Rolls, sheets, framed screens, cut-to-size

How to Specify

Material + Weave + Aperture or Mesh + Wire Ø + Width × Length + Quantity. Example: SS304, Plain weave, 1.0 mm aperture, 0.5 mm wire, 1 × 30 m roll.

Contact Galipoglu for selection support, datasheets and a project-specific quotation.
